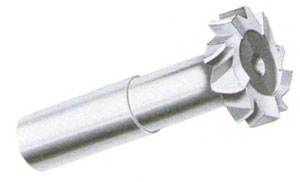

T-Slot Milling Cutters
You get faster, more accurate T-slot cutting on planer tables, drill-press tables, and similar applications with Aber Curved-Tooth T-Slot Milling Cutters. These cutter have staggered teeth – side teeth – and are available with either right- or left-hand cut. Right-hand is standard and is furnished unless otherwise specified. T-slot cutters with a taper shank are made to your specifications.
| Catalog Number |
Bolt Size |
Diameter of Cutter |
Width of Cutter |
Diameter of Neck |
Overall Length |
Diameter of Shank |
Number Teeth |
| T-14 |
5/8” |
1-1/4” |
31/64” |
21/32” |
3-15/16” |
1” |
8 |
| T-15 |
3/4” |
1-15/32” |
5/8” |
25/32” |
4-7/16” |
1” |
10 |
| T-16 |
1” |
1-27/32” |
53/64” |
1-1/32” |
4-13/16” |
1-1/4” |
10 |
| T-17 |
1-1/4” |
2-7/32” |
1-3/32” |
1-7/32” |
5-3/8” |
1-1/4” |
12 |
| T-18 |
1-1/2” |
2-21/32” |
1-11/32” |
1-17/32” |
5-29/32” |
1-1/4” |
12 |
