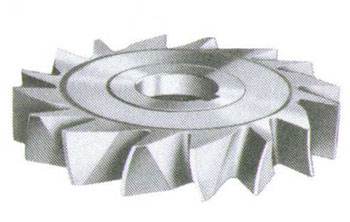

Cutter image
Shear Curved-Tooth Woodruff Keyway Cutter

Plain Milling Cutters

You can take your choice of types of Aber Plain Milling Cutters, both of which do an outstanding job. The Curved-Tooth Plain Milling Cutter has curved teeth across the full face of the cutter and is recommended for the average range of materials. The Right- and Left-Hand Shear Cutter has staggered teeth with each tooth extending the entire cutting width. For a top-noth job milling tougher materials, the Right- and Left-Hand Shear Cutter is your choice.

Catalogue Number Plain Milling Cutter Catalogue Number RLH Shear Plain Cutter Diameter Width Face Size Hole Number Teeth
P-10 PR-29 2-1/2 1 18
P-11 PR-30 2-1/2 5/16 1 16
P-12 PR-31 2-1/2 3/8 1 16
P-13 PR-32 2-1/2 7/16 1 16
P-14 PR-33 2-1/2 1 12
P-15 PR-34 2-1/2 5/8 1 12
P-16 PR-35 3 1 16
P-17 PR-36 3 5/16 1 16
P-18 PR-37 3 3/8 1 or 1-1/4 16
P-19 PR-38 3 7/16 1 or 1-1/4 14
P-20 PR-395 3 1 or 1-1/4 14
P-21 PR-40 3 5/8 1 or 1-1/4 14
P-22 PR-41 3 1 or 1-1/4 14
P-23 PR-426 4 1 or 1-1/4 18
P-24 PR-43 4 5/16 1 or 1-1/4 18
P-25 PR-44 4 3/8 1 or 1-1/4 18
P-26 PR-45 4 1 or 1-1/4 16
P-27 PR-46 4 5/8 1 or 1-1/4 16
P-28 PR-47 4 1 or 1-1/4 14
